RULMECA Rollers and Drums

It has been widely proven that when using modern metal fabrics, their durability and efficiency over time will be much greater, which is why it is essential to choose quality rollers made with great care and with properly selected materials.

Special importance must be given to the effectiveness of the retention system to protect the bearings. Rulli Rulmeca takes these requirements into account so much that it subjects its rollers to rigorous laboratory tests.

All over the world there are numerous examples of parcel transportation plants operating in very harsh environmental conditions that have been using Rulli Rulmeca rollers of different types/series for many years.

Rulmeca rollers are products that comply with all national and international standards: ISO, UNI, DIN, AFNOR, FEM, BS, JIS and CEMA.

Rollers suitable for working in very difficult conditions, with a high workload and transporting bulky material.

Shaft diameter: 20 to 40 mm

Tube diameter: 63 to 194 mm

Applications: mines, quarries, cement plants, coal-fired power stations, port facilities.

Sometimes, and for various reasons, the guide may have a tendency to move sideways.

In this case, rollers with inclined vertical axes, also known as guide rollers, can be used. However, great care must be taken when using such rollers, as the forced contact of the guide rollers with the screen can damage the edges of the screen.

In addition, if the cause of the displacement is not eliminated, the screen can overrun the guide roller or bend inwards (see drawings). For these reasons, it is advisable to always use the guide rollers in their own self-centering stations, which automatically return the screen to the center of the conveyor.

Rulmeca’s new range of products for internal logistics has been extensively revamped, allowing it to present itself on the market with renewed energy.

The series of components for industrial transportation includes rollers and various elements for the construction of:

• Gravity conveyors
• Chain-driven conveyors, with or without accumulation
• Belt-driven conveyors, with or without accumulation
• Gravity curves, chain or belt driven

All products are of high quality for handling materials in various sectors of the transportation industry.

The motorized drums are available from Ø 138 mm to Ø 1000 mm, with a variety of coating options to provide long-lasting movement and a longer service life.

Fully enclosed: motor, gearbox and bearings are fully enclosed and sealed inside a steel housing. The motorized pulleys have a safe, worry-free design that withstands the harshest conditions and reduces operating costs.

The main features of the Motorized Pulleys are: Ergonomic design, Safety, Low purchase and installation cost, Low maintenance cost, Performance, Cleanliness, Thermal protection, Weight reduction, Variable frequency drive distribution, Fewer components and Low noise level.

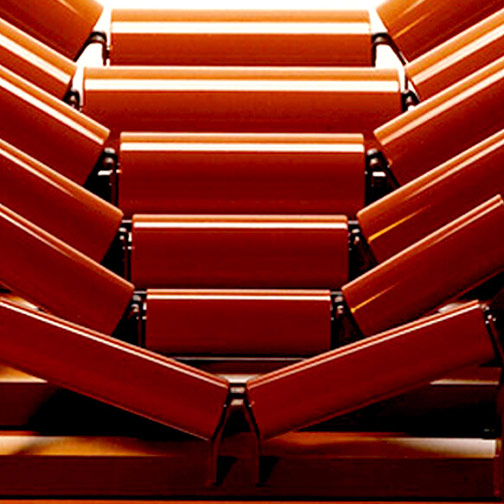

There are two categories of stations identified on the conveyor belt: the upper output stations, which perform the function of supporting the belt in the loading and material transport section, and the lower stations, which support the discharge belt in its return section.

The upper stations can be presented in two base configurations: flat, with a single horizontal roller, usually supported by two brackets fixed to the conveyor belt frame, on a rail, usually with 3 rollers, supported by a cross bar, also fixed to the conveyor belt frame. In the loading sections, there are also impact stations with three rollers with rubber rings or suspended in the form of a garland (adornment base) with 3 or 5 rollers.

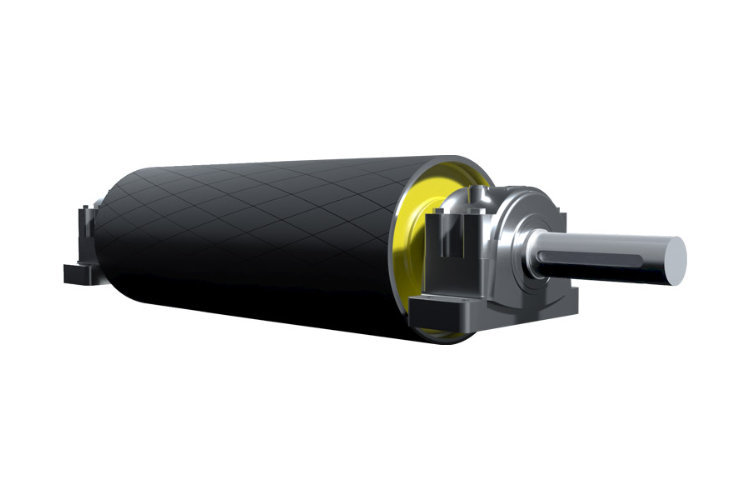

Rulli Rulmeca has over 50 years’ experience in the design and production of drums.

The use of high quality materials and the application of advanced technology production processes, together with the application of the ISO 9001:2008 certified quality assurance system, contribute to the manufacture of products of the highest quality that allow for continuity of performance, significantly reducing maintenance costs.

The drums are sized on the basis of the characteristics of each conveyor belt and come in a wide variety of construction methods. Depending on the position they occupy on a conveyor belt, the drums have to withstand stresses from the belt and the load. For use in more severe working conditions, they can be supplied with linings, usually rubber, which prevent the belt from slipping (especially in the presence of water) and increase the traction capacity of the motor drums.
